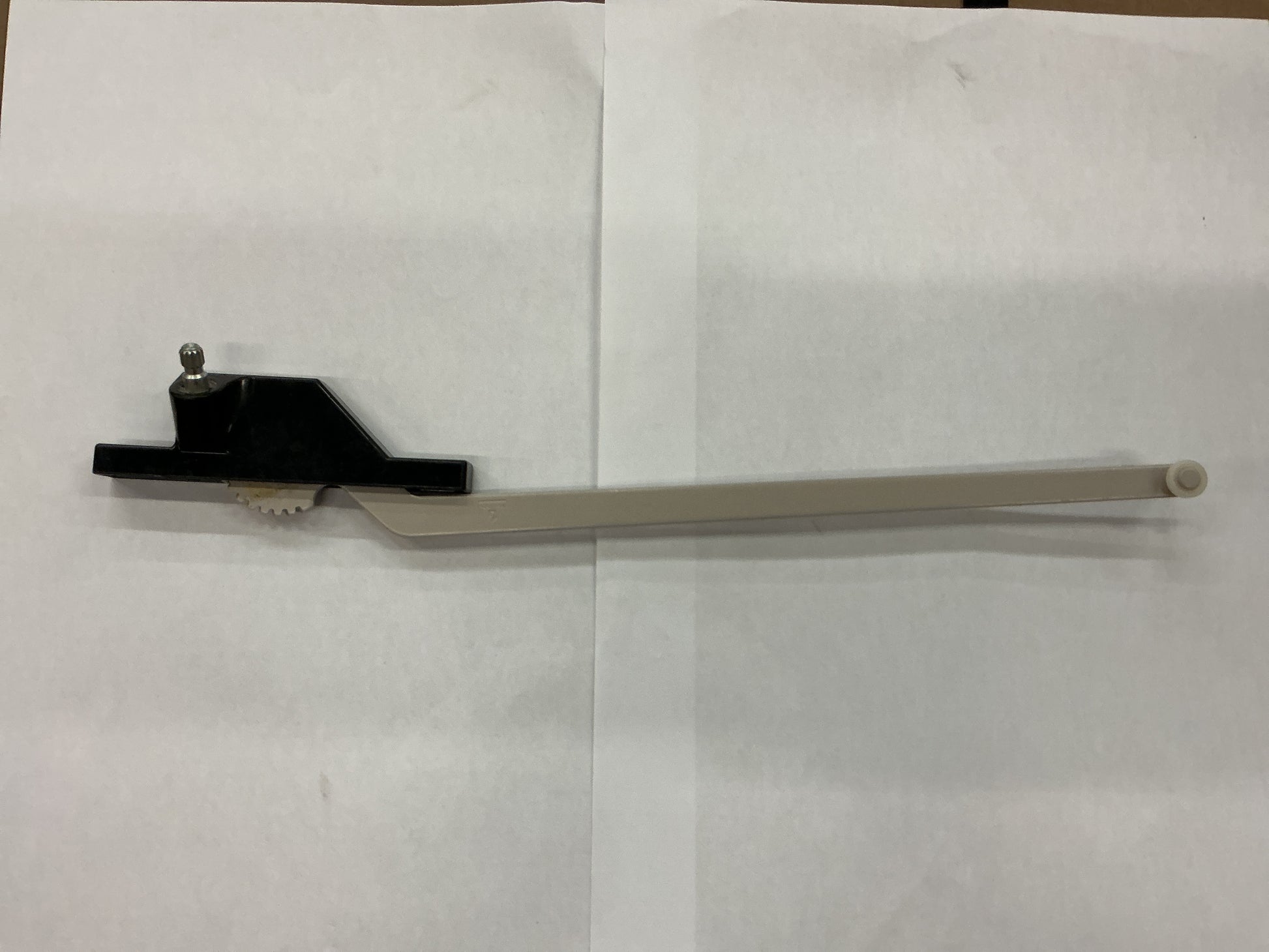

The 23 Series Single Arm Casement Operator features a 13-1/2" arm and is designed for use with compatible casement window systems. This rear-mounted operator is constructed with a high-pressure die-cast zinc housing, hardened steel worm gear and gear arm, and a stainless steel arm roller. It is designed to work with 14 Series Casement Hinges or 35 Series 4-Bar Hinges and provides up to 90° window opening.
Key Features:
Part Number: ADI 23.79.02.02
Series: 23 Series
Type: Single Arm Casement Operator
Arm Length: 13-1/2"
Mounting Style: Rear Mount
Stainless Steel Roller
High-pressure die-cast zinc housing
Hardened steel worm gear and gear arm
E-Gard® corrosion-resistant coating
Compatible with 14 Series Casement Hinges and 35 Series 4-Bar Hinges
