Single Arm Casement Operator 13.5" ADI (White)

Single Arm Casement Operator 13.5" ADI #23.02.32.001 /

ADI #23.02.32.002

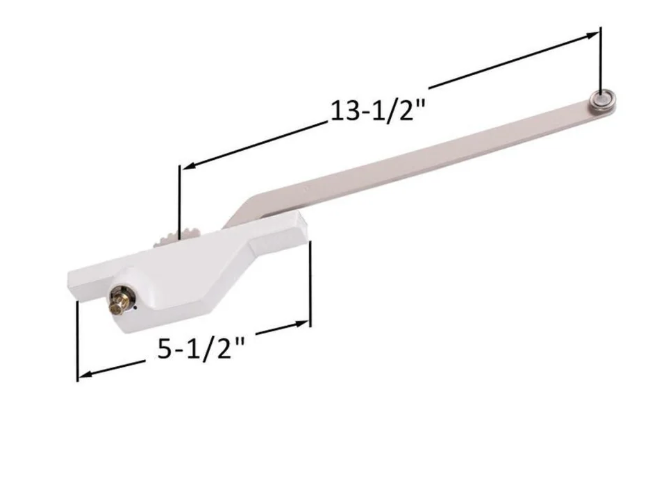

The 23 Series Single Arm Casement Operator features a 13-1/2" arm and is designed for use with compatible casement window systems. This rear-mounted operator is constructed with a high-pressure die-cast zinc housing, hardened steel worm gear and gear arm, and a stainless steel arm roller. It is designed to work with 14 Series Casement Hinges or 35 Series 4-Bar Hinges and provides up to 90° window opening.

Key Features:

• Part Number: 23.02.32.001 / 23.02.32.001
• Series: 23 Series
• Type: Single Arm Casement Operator
• Arm Length: 13-1/2"
• Mounting Style: Rear Mount
• Stainless Steel Roller
• High-pressure die-cast zinc housing
• Hardened steel worm gear and gear arm
• E-Gard® corrosion-resistant coating
• Compatible with 14 Series Casement Hinges and 35 Series 4-Bar Hinges
• Provides up to 90° window opening
• Handle sold separately
• Sold individually
