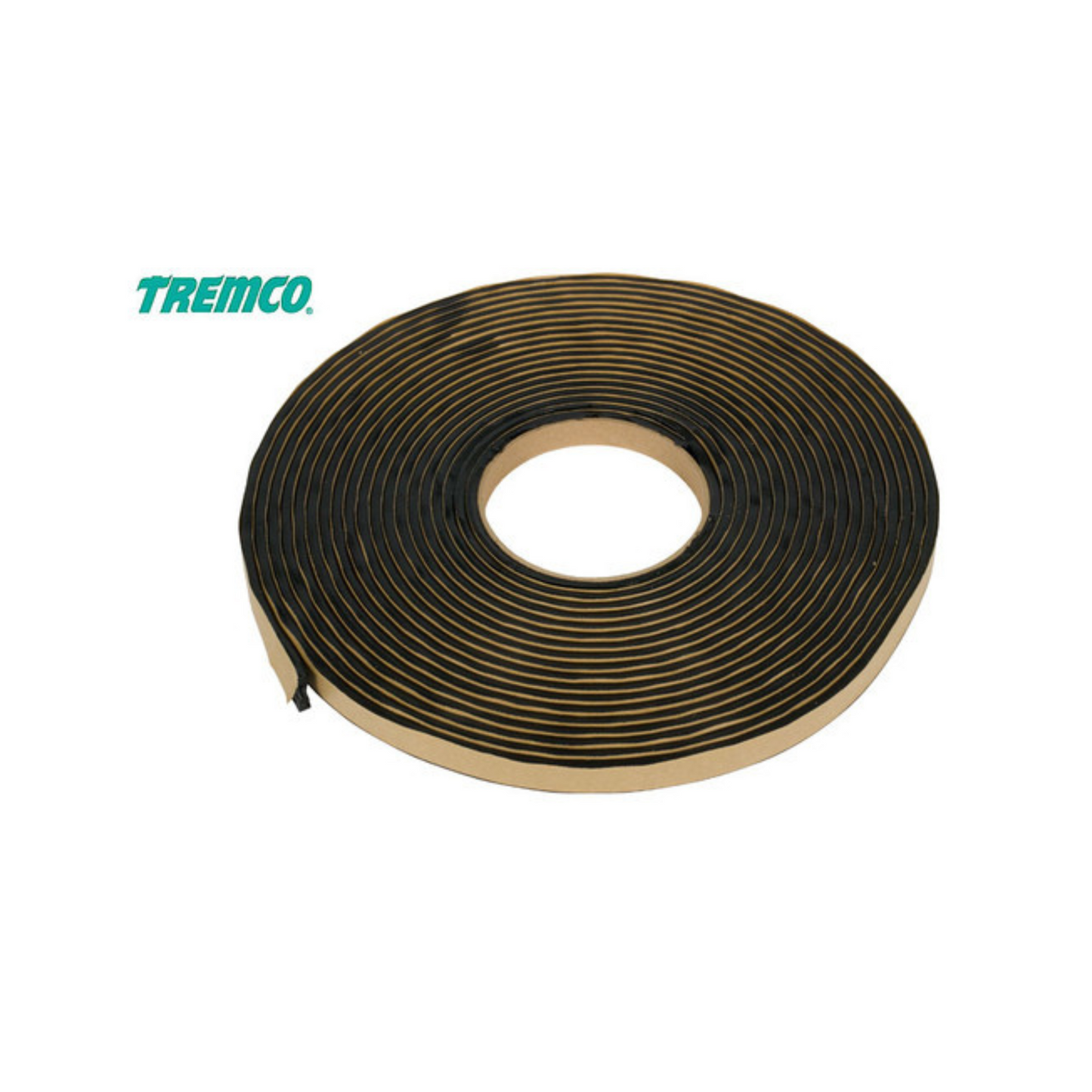

VISIONstrip .125" (1/8), 440'/Case

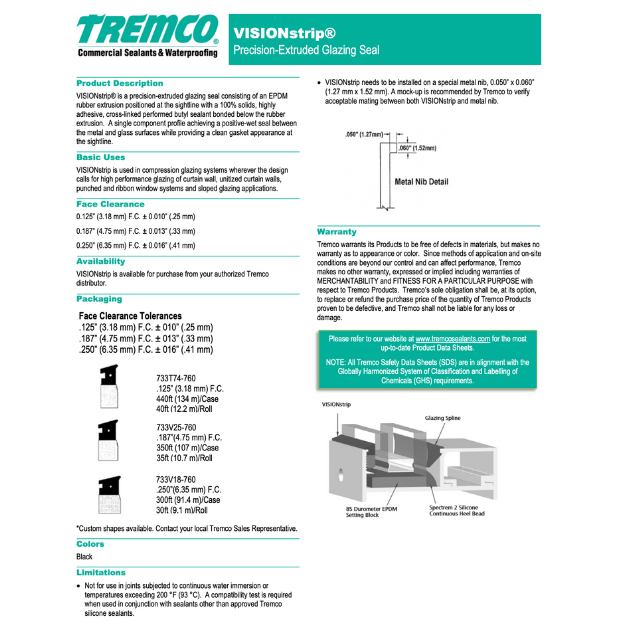

TDS

VISIONstrip®

Product Description: VISIONstrip® is a precision-extruded glazing seal featuring an EPDM rubber extrusion at the sightline, combined with a highly adhesive, cross-linked butyl sealant below. This single-component profile ensures a positive-wet seal between metal and glass surfaces while providing a clean gasket appearance at the sightline.

Basic Uses: VISIONstrip® is ideal for compression glazing systems requiring high-performance glazing in curtain walls, unitized curtain walls, punched and ribbon window systems, and sloped glazing applications.

Face Clearance:

• 0.125” (3.18 mm) F.C. ± 0.010” (.25 mm)
• 0.187” (4.75 mm) F.C. ± 0.013” (.33 mm)
• 0.250” (6.35 mm) F.C. ± 0.016” (.41 mm)

Availability: Available for purchase from your authorized Tremco distributor.

Packaging: Custom shapes available. Contact your local Tremco Sales Representative.

Colours: Black

Limitations:

• Not suitable for joints subjected to continuous water immersion or temperatures exceeding 200°F (93°C).
• A compatibility test is required when using sealants other than approved Tremco silicone sealants.
• Must be installed on a special metal nib, 0.050” x 0.060” (1.27 mm x 1.52 mm). A mock-up is recommended to verify acceptable mating between VISIONstrip® and the metal nib.

Warranty: Tremco warrants its products to be free of defects in materials but does not guarantee appearance or colour. Since application methods and on-site conditions can affect performance, Tremco makes no other warranty, expressed or implied, including warranties of MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE. Tremco’s sole obligation is to replace or refund the purchase price of defective products. Tremco is not liable for any loss or damage.

For the most up-to-date Product Data Sheets, please visit Tremco Sealants.
