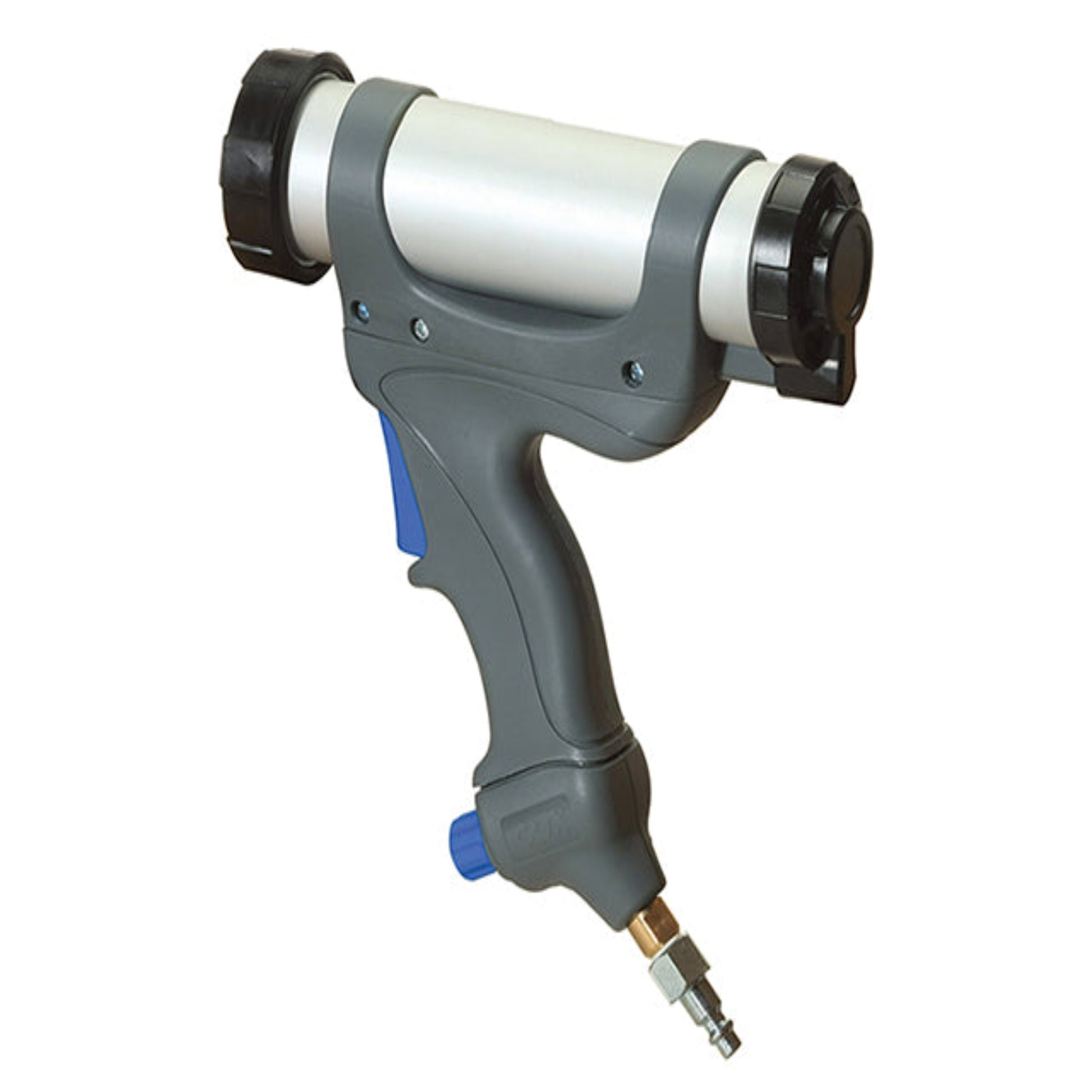

AirFlow™ 3 Cartridge

1-component pneumatic bead dispenser for 310/400mL cartridges

Cartridge: 310mL
Max Thrust: 269lbf
Pressure: 6.8bar

Specifications

• Weight: 0.60kg / 1.3lbs
• Barrel Length: 235mm / 9.2in
• Maximum Thrust: 269lbf
• Maximum Pneumatic Pressure: 6.8bar (100psi)
• Handle Material: Glass Filled Nylon
• Barrel Material: Anodized Aluminum
• Tool Component Approvals: CE, REACH
• Cartridge Capacity: 310mL (10.5oz)
• Viscosity: Low
• Standard Color: Black/Grey
• Nozzle Dimension: ø38mm / 1.5in

Features

• Glass-reinforced nylon handle
• Variable speed regulator
• Anodized aluminum barrel
• 6.8bar (100psi) regulator
• Built-in silencer (less than 70dB)
• Direct acting mechanism

Benefits

• Ergonomically designed for comfort
• For precise control and smooth material flow
• Lightweight and long life
• Fitted as standard - others are available
• Lowers noise level
• Air pressure applied directly to the plunger
• Gives you long worry-free performance

Compatible: 310mL & 400 mL
