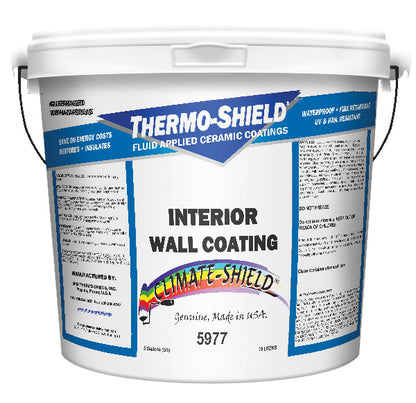

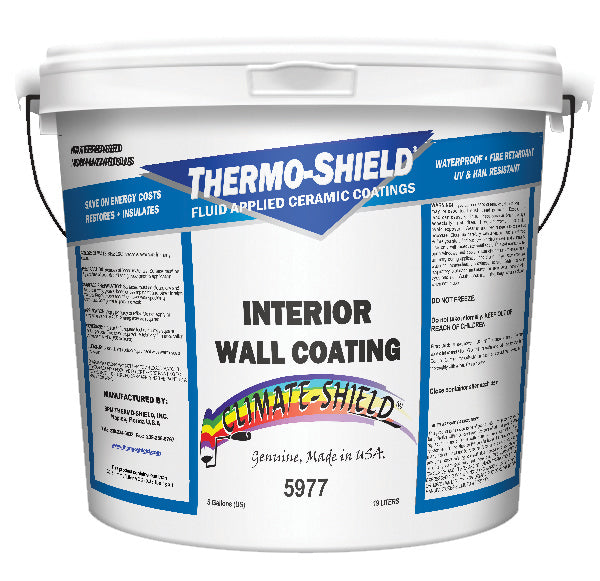

Thermo-Shield® Interior Wall Coats are high-performance, water-based acrylic coatings designed to waterproof interior walls while improving durability, comfort, and safety. Formulated with vacuum ceramic microsphere technology, they create a seamless, flexible membrane that bridges hairline cracks and provides thermal and sound insulation.
These non-toxic, low-VOC coatings are fully washable, resist chemicals and dirt pickup, reduce condensation, and help maintain even temperatures from floor to ceiling. With excellent fire resistance and very low smoke development, Thermo-Shield® Interior Wall Coats are ideal for residential, commercial, and institutional interiors. Available in a range of architectural colours with a smooth matte finish.
Typical Uses
Interior walls and ceilings where durability, fire safety, sound reduction, and moisture control are required. Coverage 560 sq. ft. per coat 5-Gallon (18.9L)
Product Options
Standard Interior – For most climates; fire-resistant, chemical-resistant, non-toxic, and washable
Tropical Interior – Same performance as Standard, with added resistance to fungal growth in humid conditions
Key Performance
Reflectivity: 89%
Emittance: 94%
Thermal Conductivity: 0.06 W/m·K
VOC: 39.5 g/L (0.33 lbs/gal)
Warranty: 10 years
Application & Coverage
Surface Prep: Clean, dry surfaces free of dust, grease, rust, efflorescence, and loose paint
Coverage (2 coats): 10.4 m² per gallon @ 150 microns DFT (112 sq ft @ 6 mils)
Dry Time (24°C / 50% RH):
Set: 20 minutes
Recoat: 4 hours
Full cure: 12 hours
Thinning: None required (up to 0.24 L / 1 cup per gallon for spray adjustment only)
Application Methods
Roller or airless spray recommended
Brush for small areas (3 cross-brushed coats required)
Spray and back-roll for uniform coverage; apply full wet coats
Airless Spray Settings
Tip: 0.031"
Pressure: 2200–2500 psi
Fan: 60°
Pump: Min. 1 GPM @ 2500 psi
Remove filters/screens; prime pump with water
Compatible equipment includes Binks Super Hornet, Graco 433, and equivalent units.
Cleanup, Storage & Packaging
Cleanup: Warm soapy water; flush spray equipment with mineral spirits
